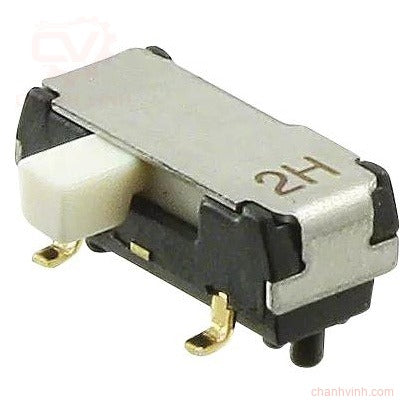

CL-SB-22B-01 2944186

Nidec Copal Electronics Switch: slide; Pos: 2; DPDT; 0.2A/12VDC; ON-ON; SMT; 8.5x3.5x3.5mm [CL-SB-22B-01]

Mã nhà sản xuất
CL-SB-22B-01
Thương hiệu
NIDEC COPAL ELECTRONICS
Mã kho
179-6819
Liên hệ
📩 Liên hệ để có giá tốt: [email protected]

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins) Standardization of the silver contacts as well as gold contacts Stroke is 2 mm Using heat-resistant resin to support reflow soldering mounting Adopted Twin-contacts mechanism

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)

Standardization of the silver contacts as well as gold contacts

Stroke is 2 mm

Using heat-resistant resin to support reflow soldering mounting

Adopted Twin-contacts mechanism

THÔNG SỐ KỸ THUẬT
Manufacturer Nidec Components
Manufacturer Part No. CL-SB-22B-01
Contact Configuration DPDT
Mounting Type Surface Mount
Contact Current Rating 200 (Non-Switching) mA, 200 (Switching) mA
Terminal Type Gull Wing
Actuator Type Slide
Length 8.5mm
Width 3.5mm
Depth 5.5mm
Dimensions 8.5 x 3.5 x 5.5mm
Contact Resistance 52 (Silver)mΩ
Voltage Rating 50V dc
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Contact Material Copper Alloy
Operating Temperature Range -40 → +85 °C
Actuator Material Polyamide

Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
