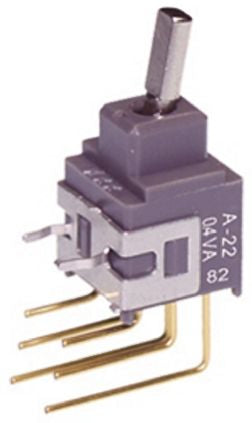

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, Latching, PCB [A-22HV]; 475-2014
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA @ 28 V ac/dc |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Actuator Length | 6.3mm |
| Actuator Material | Nickel Plated Brass |
| Contact Resistance | 50mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -30 +85°C |
| Contact Material | Gold Plated Brass (Stationary); Gold Plated Phosphor Bronze (Movable) |
| Minimum Operating Temperature | -30°C |
