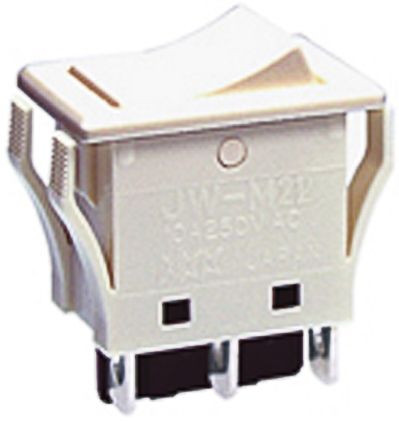

NKK Switches Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount [JW-M22RAA]; 428-9320
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 15.4mm |
| Panel Cut Out Height | 24mm |
| Contact Current Rating | 10 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Ivory |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect, Solder |
| Actuator Shape | Rectangular |
| Maximum Operating Temperature | +70°C |
| Mechanical Life | 25000Operations |
| Operating Temperature Range | -25 → +70°C |
| Panel Cut Out Size | 24 x 15.4mm |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -25°C |
| Contact Material | Silver Plated Silver Alloy |
| AC Voltage Rating | 125 V, 250 V |
| Case Material | Polyamide |
