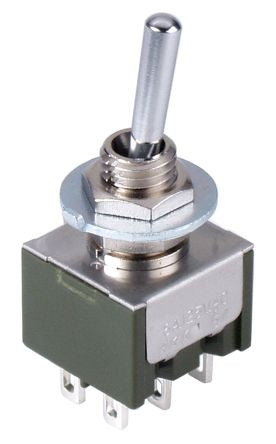

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, On-On-On, PCB [M2024SS4W01]; 124-5923
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On-On |
| Contact Current Rating | 3 A @ 30 V dc, 6 A @ 125 V ac |
| Mounting Type | PCB |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 10.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 250 V ac |
| Contact Resistance | 10mΩ |
| Contact Material | Brass, Copper |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Standards Met | UL 94V-0 |
| Operating Temperature Range | -30 +85°C |
| Mechanical Life | 100000Operations |
| Panel Cut Out Size | 6.5 (Dia.)mm |
