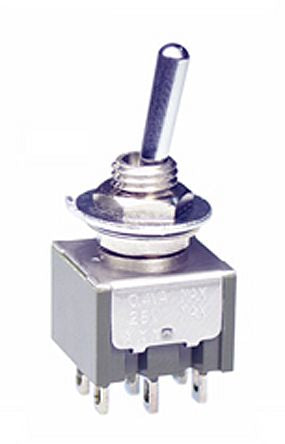

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, (On)-Off-(On), IP67, PCB [M2028WBG01]; 124-5935
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 100 mA |
| Mounting Type | PCB |
| Terminal Type | Solder |
| IP Rating | IP67 |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 20mm |
| Actuator Material | Chrome Plated |
| Voltage Rating | 28V ac/dc |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 50000Operations |
| Panel Cut Out Size | 12.5 (Dia.)mm |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 +85°C |
| Contact Material | Gold Plated |
| Standards Met | IEC 60529 |
