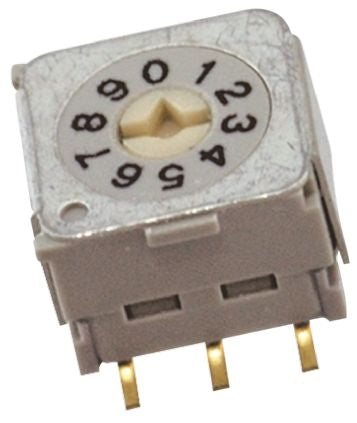

NKK Switches, 10 Position, Decimal Rotary Switch, 100 mA, Through Hole [ND3-FR10P-TP]; 197-729
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 10 |
| Voltage Rating | 5V dc |
| Output Coding | Decimal |
| Depth | 7.92mm |
| Width | 8.12mm |
| Dimensions | 8.12 x 7.92 x 5.6mm |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Case Material | Glass Fibre Reinforced PA |
| Legend Text | 0-9 |
| Legend Text Colour | Black |
| Contact Material | Gold Plated Brass (Stationary); Gold Plated Beryllium Copper (Movable) |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | 20000Operations |
| Maximum Operating Temperature | +85°C |
| Height | 5.6mm |
