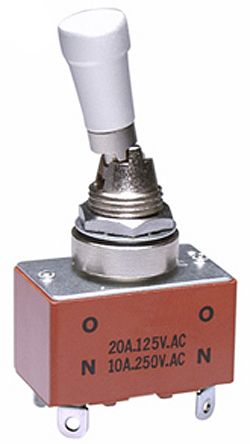

NKK Switches Double Pole Single Throw (DPST) Toggle Switch, Latching, IP67, Panel Mount [S21AL]; 124-5939
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | Latching |
| Contact Current Rating | 15 A |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| IP Rating | IP67 |
| Panel Cut Out Diameter | 12.2mm |
| Actuator Length | 23.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 250 V ac |
| Contact Resistance | 10mΩ |
| Contact Material | Brass |
| Panel Cut Out Size | 12.2 (Dia.)mm |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -10 → +70°C |
| Minimum Operating Temperature | -10°C |
| Mechanical Life | 50000Operations |
