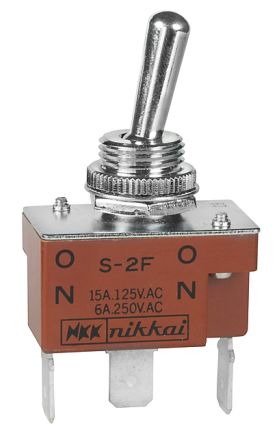

NKK Switches Single Pole Double Throw (SPDT) Toggle Switch, Latching, IP67, Panel Mount [S2F]; 181-3644
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | Latching |
| Contact Current Rating | 15 A |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| IP Rating | IP67 |
| Illuminated | No |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Voltage Rating | 125V ac |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Alloy (Movable & Stationary) |
| Operating Temperature Range | -10 +70°C |
| Maximum Operating Temperature | +70°C |
| Standards Met | CSA, UL |
| Minimum Operating Temperature | -10°C |
