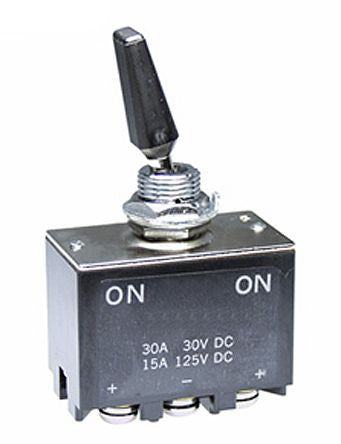

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount [S822D]; 124-5959
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | Latching |
| Contact Current Rating | 30 A |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 27mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 400V dc |
| Contact Resistance | 10mΩ |
| Standards Met | CSA Recognised, CULus Recognised, UL Recognised |
| Maximum Operating Temperature | +70°C |
| Contact Material | Brass |
| Panel Cut Out Size | 12.5 (Dia.)mm |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 +70°C |
| Mechanical Life | 50000Operations |
