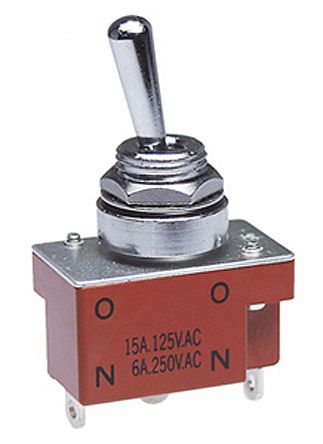

NKK Switches Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), IP67, Panel Mount [S8AW]; 124-5947
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 15 A @ 125 V ac, 20 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| IP Rating | IP67 |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 250 V ac |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Panel Cut Out Size | 12.5 (Dia.)mm |
| Contact Material | Brass |
| Mechanical Life | 30000Operations |
| Operating Temperature Range | -10 +70°C |
