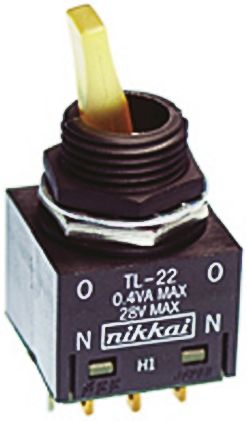

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, Latching, Illuminated, IP65, Panel Mount [TL-22H1SKYYG4]; 453-7994
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA @ 28 V |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| IP Rating | IP65 |
| Illuminated | Yes |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 11mm |
| Actuator Material | PC |
| Contact Resistance | 20mΩ |
| Panel Cut Out Size | 12.5mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | -10 +55°C |
| Mechanical Life | 50000Operations |
| Contact Material | Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable) |
