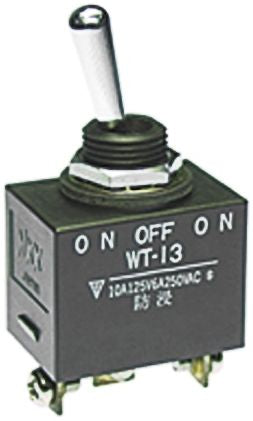

NKK Switches Single Pole Double Throw (SPDT) Toggle Switch, On-Off-On, IP67, Panel Mount [WT-13AT]; 354-3285
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 10 A@ 125 V ac, 10 A@ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| IP Rating | IP67 |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 10mΩ |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -30 +70°C |
| Minimum Operating Temperature | -30°C |
| Contact Material | Silver Plated Silver Copper Alloy |
| Panel Cut Out Size | 12.5mm |
