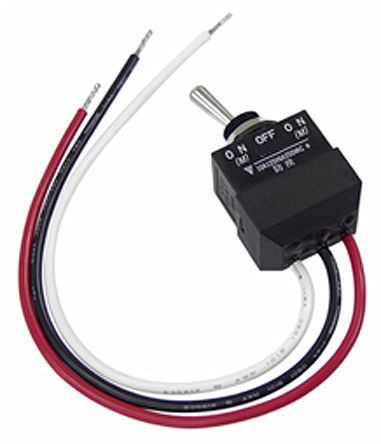

NKK Switches Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), IP60, IP67, Panel Mount [WT18L]; 124-5964
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| IP Rating | IP60, IP67 |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 250 V ac |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +70°C |
| Contact Material | Copper |
| Minimum Operating Temperature | -30°C |
| Standards Met | CSA TEW 105 Certified, UL 94V-0, UL AWM 1015 Recognised |
| Panel Cut Out Size | 12.5 (Dia.)mm |
| Operating Temperature Range | -30 +70°C |
| Mechanical Life | 30000Operations |
