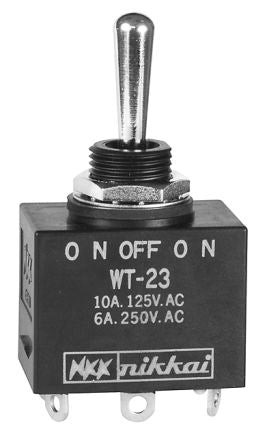

NKK Switches Double Pole Double Throw (DPDT) Toggle Switch, On-Off-On, IP60, IP67, Panel Mount [WT23S]; 181-3654
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-Off-On |
| Contact Current Rating | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| IP Rating | IP60, IP67 |
| Illuminated | No |
| Panel Cut Out Diameter | 12.5mm |
| Actuator Length | 17.5mm |
| Voltage Rating | 250V ac |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -30 +70°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Alloy Plus Copper (Movable & Stationary) |
