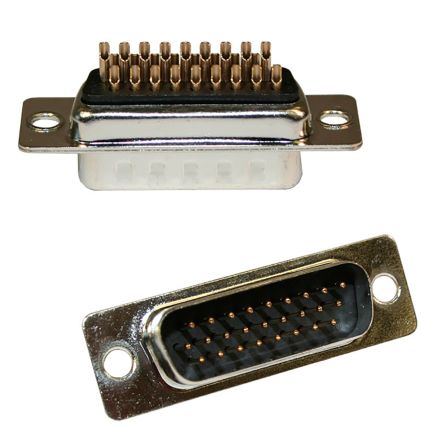

Norcomp 180 Series Panel Mount, 26 Pin High Density D-Sub D-sub Connector, Vertical Socket [180-026-203L001]; 174-8650
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 26 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.29mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500.0 V |
| Length | 39.15mm |
| Width | 12.6mm |
| Depth | 12.2mm |
| Dimensions | 39.15 x 12.6 x 12.2mm |
| Contact Plating | Gold Flash |
| Series | 180 |
| Minimum Operating Temperature | -50.0°C |
| Maximum Operating Temperature | +100°C |
| Contact Material | Brass |
