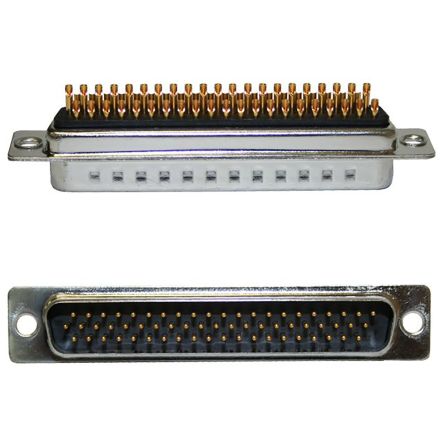

Norcomp 180 Series Panel Mount, 44 Pin High Density D-Sub D-sub Connector, Vertical Plug [180-M44-103L001]; 174-8654
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 44 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.286mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 50.8mm |
| Width | 12.44mm |
| Depth | 12.19mm |
| Dimensions | 50.8 x 12.44 x 12.19mm |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold Flash |
| Contact Material | Brass |
| Minimum Operating Temperature | -55.0°C |
| Series | 180 |
