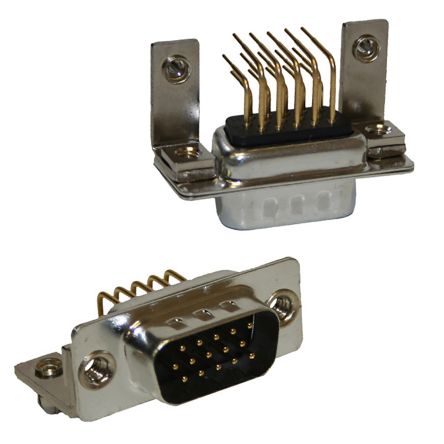

Norcomp 15 Way Right Angle PCB D-sub Connector Plug, 2.286mm Pitch, with Board Lock and Locator Plate [181-M15-113R141]; 174-8529
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.286mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Mounting Hardware | Board Lock and Locator Plate |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 30.734mm |
| Width | 11.938mm |
| Depth | 12.446mm |
| Dimensions | 30.734 x 11.938 x 12.446mm |
| Series Number | 181 |
| Contact Material | Brass |
| Contact Plating | Gold Flash |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +105°C |
