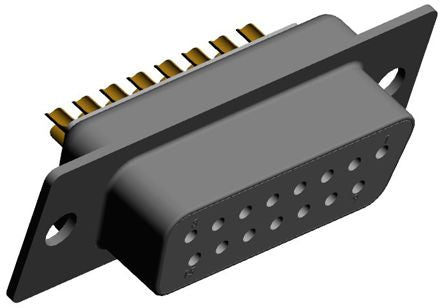

Norcomp 772, SEAL-D Series Cable Mount, 15 Pin Standard D-Sub D-sub Connector Socket [772-E15-203R001]; 135-4226
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.769mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500.0 V |
| Length | 39.14mm |
| Width | 10.08mm |
| Depth | 12.6mm |
| Dimensions | 39.14 x 10.08 x 12.6mm |
| Minimum Operating Temperature | -50.0°C |
| Contact Material | Brass |
| Series | 772, SEAL-D |
| Maximum Operating Temperature | +100°C |
| Contact Plating | Gold |
