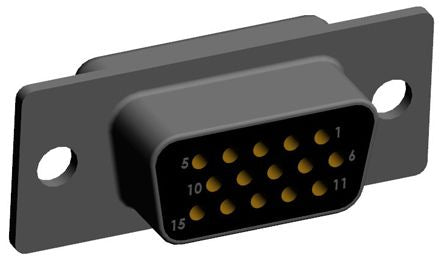

Norcomp 780, SEAL-D Series, 15 Way Plug-In Mount PCB D-sub Connector Socket, 2.286mm Pitch [780-M15-213R001]; 135-4241
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Plug-In Mount |
| Pitch | 2.286mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 30.81mm |
| Width | 10.9mm |
| Depth | 10.72mm |
| Dimensions | 30.81 x 10.9 x 10.72mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Series | SEAL-D |
| Series Number | 780 |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Brass |
