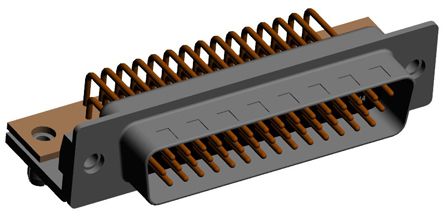

Norcomp 781, SEAL-D Series, 44 Way Right Angle Plug-In Mount PCB D-sub Connector Plug, 2.286mm Pitch [781-M44-113R141]; 135-4252
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 44 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Plug-In Mount |
| Pitch | 2.286mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Mounting Hardware | #4-40 Insert Boardlock & Locator Plate |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 53.04mm |
| Width | 10.998mm |
| Depth | 12.55mm |
| Dimensions | 53.04 x 10.998 x 12.55mm |
| Minimum Operating Temperature | -55.0°C |
| Series | SEAL-D |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold |
| Contact Material | Brass |
| Series Number | 781 |
