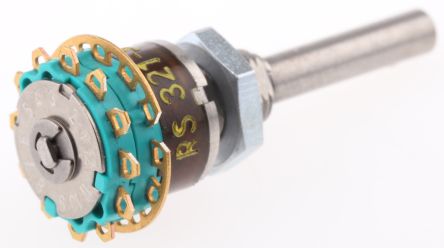

NSF MY non short, 6 Position DP6T Rotary Switch, 1.5 A, Solder [500395-000-000-000]; 321-329
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | MY non short |
| Contact Configuration | DP6T |
| Contact Current Rating | 1.5 A |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 115V ac |
| Diameter | 12.2mm |
| Dimensions | 12.2 x 37mm |
| Mounting Type | Panel Mount |
| Mounting Hole Size | 5.05 x 4.55 mm |
| Terminal Type | Solder |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold |
| Case Material | Diallylphthalate |
| Height | 37mm |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 25000Operations |
