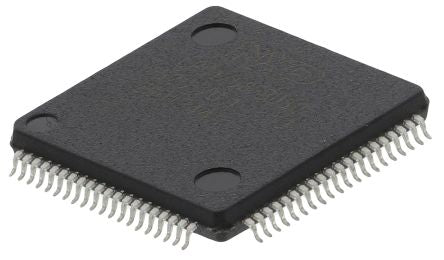

NXP LPC1758FBD80,551, 32bit ARM Cortex M3 Microcontroller, 100MHz, 512 kB Flash, 80-Pin LQFP [LPC1758FBD80,551]; 103-8067
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC17 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 64 kB |
| USB Channels | 1 x Device, 1 x Host, 1 x OTG |
| Number of PWM Units | 2 |
| ADC Channels | 6 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.3 V |
| Width | 12.1mm |
| Maximum Operating Temperature | +85 °C |
| ADCs | 6 x 12 bit |
| Length | 12.1mm |
| Timers | 4 x 32 bit |
| Height | 1.5mm |
| Timer Resolution | 16 bit, 32 bit |
| PWM Channels | 7 |
| ADC Resolution | 12bit |
| Number of CAN Channels | 2 |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Number of I2C Channels | 2 |
| Number of UART Channels | 4 |
| Number of Ethernet Channels | 1 |
| Number of Timers | 4 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(Motor Control), 6(General Purpose) |
| Dimensions | 12.1 x 12.1 x 1.5mm |
