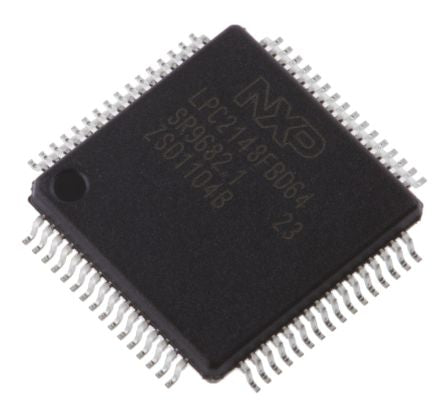

NXP LPC2148FBD64,151, 16/32bit ARM7TDMI-S Microcontroller, 60MHz, 512 kB Flash, 64-Pin LQFP [LPC2148FBD64,151]; 476-208
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC21 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM7TDMI-S |
| Data Bus Width | 16/32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 40 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 1 |
| ADC Channels | 14 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of ADC Units | 2 |
| Length | 10.1mm |
| Dimensions | 10.1 x 10.1 x 1.45mm |
| Program Memory Type | Flash |
| Instruction Set Architecture | RISC |
| Maximum Operating Temperature | +85 °C |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| Number of Timers | 2 |
| ADC Resolution | 10bit |
| PWM Channels | 6 |
| Width | 10.1mm |
| Pulse Width Modulation | 1(6 Channel) (Motor Control) |
| ADCs | 2(14 x 10 bit) |
| Height | 1.45mm |
| Timer Resolution | 32bit |
| Minimum Operating Temperature | -40 °C |
| Timers | 2 x 32 bit |
