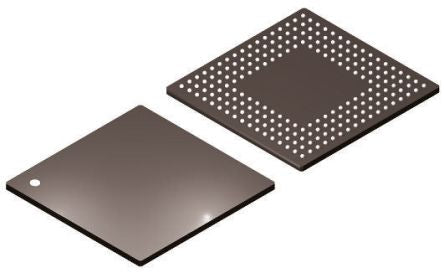

NXP LPC3250FET296/01,5, 16 bit, 32 bit ARM968EJ-S Microcontroller, 266MHz ROMLess, 296-Pin TFBGA [LPC3250FET296/01,5]; 124-2330
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | LPC32 |
| Package Type | TFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 296 |
| Device Core | ARM968EJ-S |
| Data Bus Width | 16 bit, 32 bit |
| Maximum Frequency | 266MHz |
| RAM Size | 256 kB |
| USB Channels | 1 x Device, 1 x Host, 1 x OTG |
| Number of PWM Units | 2 |
| ADC Channels | 3 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 1.35 V, 1.8 V, 3.3 V |
| Number of Timers | 6 |
| Number of UART Channels | 7 |
| Number of I2C Channels | 2 |
| Number of Ethernet Channels | 1 |
| Height | 0.8mm |
| PWM Channels | 3 |
| Width | 15.1mm |
| Dimensions | 15.1 x 15.1 x 0.8mm |
| Pulse Width Modulation | 1 (Motor Control), 2(PWM) |
| Program Memory Type | ROMLess |
| ADC Resolution | 10bit |
| Timers | 1(6 Channel) |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | DSP, RISC |
| Length | 15.1mm |
| ADCs | 3 x 10 bit |
| Number of ADC Units | 1 |
