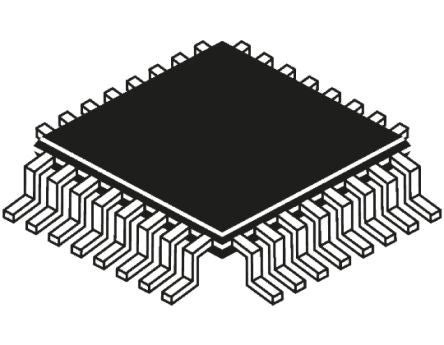

NXP MC56F8013VFAE, 16bit 56800E Microcontroller, 32MHz, 16 kB Flash, 32-Pin LQFP [MC56F8013VFAE]; 211-708
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | M56F8000 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | 56800E |
| Data Bus Width | 16bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 3 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of LIN Channels | 1 |
| Timers | 4 x 16 bit |
| Dimensions | 7 x 7 x 1.45mm |
| Program Memory Type | Flash |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| PWM Resolution | 15bit |
| Number of I2C Channels | 1 |
| Number of Timers | 4 |
| Number of UART Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | CISC |
| Maximum Operating Temperature | +105 °C |
| Length | 7mm |
| ADCs | 2(3 x 12 bit) |
| PWM Channels | 6 |
| Width | 7mm |
| Pulse Width Modulation | 6 x 15 bit |
| Number of ADC Units | 2 |
| ADC Resolution | 12bit |
