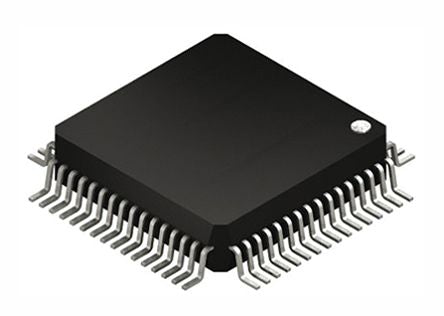

NXP MC908AB32CFUE, 8bit HC08 Microcontroller, 8MHz, 32 kB Flash, 64-Pin QFP [MC908AB32CFUE]; 168-9645
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | M68HC08 |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | HC08 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 8MHz |
| RAM Size | 512 B |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| ADC Resolution | 8bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | CISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 14mm |
| ADCs | 8 x 8 bit |
| Timer Resolution | 16bit |
| Height | 2.4mm |
| PWM Channels | 4 |
| Width | 14mm |
| Timers | 4 x 16 bit |
| Dimensions | 14 x 14 x 2.4mm |
| Pulse Width Modulation | 4 x 16 bit |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Number of Timers | 4 |
