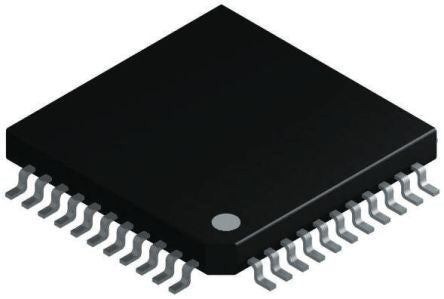

NXP MC9S08GT16ACFBE, 8bit S08 Microcontroller, 40MHz, 16 kB Flash, 44-Pin QFP [MC9S08GT16ACFBE]; 178-7031
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | HCS08 |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | S08 |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
| ADCs | 8 x 10 bit |
| Timer Resolution | 16bit |
| Height | 2mm |
| PWM Channels | 2 |
| Width | 10mm |
| Timers | 2 x 16 bit |
| Dimensions | 10 x 10 x 2mm |
| Length | 10mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 2(2 x 16 bit) |
| Instruction Set Architecture | CISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
