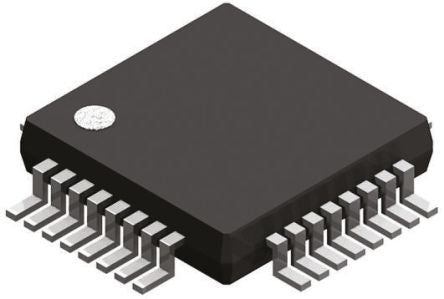

NXP MC9S08PA16VLC, 8bit S08 Microcontroller, 20MHz, 16 kB Flash, 32-Pin LQFP [MC9S08PA16VLC]; 169-7138
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | HCS08 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | S08 |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Number of I2C Channels | 1 |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| PWM Channels | 2, 6 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| ADCs | 1 (12 x 12 bit) |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 1(2 x 16 bit), 1(6 x 16 bit) |
| Dimensions | 7 x 7 x 1.4mm |
| Width | 7mm |
| Length | 7mm |
