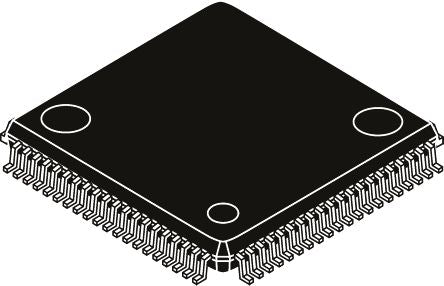

NXP MC9S12A64CFUE, 16bit HSC12 Microcontroller, 25MHz, 64 kB Flash, 80-Pin QFP [MC9S12A64CFUE]; 169-7281
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | HCS12 |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | HSC12 |
| Data Bus Width | 16bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 25MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.5 → 5 V |
| Length | 14.1mm |
| Number of I2C Channels | 1 |
| Number of Timers | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(4 x 16 bit), 1(8 x 8 bit) |
| Dimensions | 14.1 x 14.1 x 2.2mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 2 |
| Timers | 1(8 x 16 bit) |
| Width | 14.1mm |
| PWM Channels | 12 |
| Height | 2.2mm |
| Timer Resolution | 16bit |
| ADCs | 2 (8 x 10 bit) |
| PWM Resolution | 8 bit, 16 bit |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | MCU |
