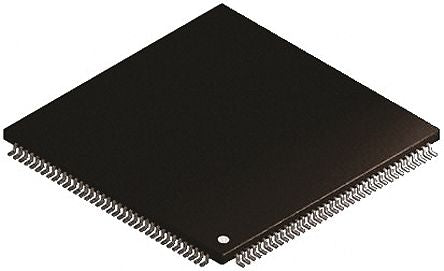

NXP MC9S12XEP100CAG, 16bit HSC12X Microcontroller, 50MHz, 1 MB Flash, 144-Pin LQFP [MC9S12XEP100CAG]; 169-7282
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | HCS12 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | HSC12X |
| Data Bus Width | 16bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 50MHz |
| RAM Size | 64 kB |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.13 → 5.5 V |
| Pulse Width Modulation | 1(8 x 8 bit) |
| Program Memory Type | Flash |
| Number of I2C Channels | 2 |
| Number of Timers | 1 |
| Length | 20mm |
| ADCs | 1(24 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 8 |
| Width | 20mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of CAN Channels | 5 |
| Instruction Set Architecture | MCU |
| PWM Resolution | 8 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Dimensions | 20 x 20 x 1.45mm |
| Timers | 1(8 x 16 bit) |
