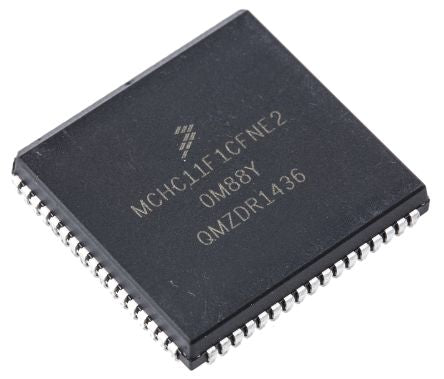

NXP MCHC11F1CFNE2, 8bit HC11 Microcontroller, 2MHz, 512 B EEPROM, 68-Pin PLCC [MCHC11F1CFNE2]; 539-0392
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | M68HC11 |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 68 |
| Device Core | HC11 |
| Data Bus Width | 8bit |
| Program Memory Size | 512 B |
| Maximum Frequency | 2MHz |
| RAM Size | 1.024 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Timers | 8 x 16 bit |
| Dimensions | 0.956 x 0.956 x 0.16in |
| Program Memory Type | EEPROM |
| Number of UART Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Height | 4.06mm |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC |
| ADC Resolution | 8bit |
| PWM Channels | 3, 4 |
| Width | 0.956in |
| Maximum Operating Temperature | +85 °C |
| Length | 24.28mm |
| ADCs | 8 x 8 bit |
| Number of Timers | 8 |
| Pulse Width Modulation | 3 x 16 bit, 4 x 16 bit |
