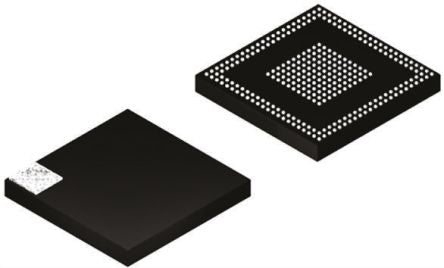

NXP MCIMX286CVM4B, 32bit ARM9 Microcontroller, 454MHz, 128 kB ROM, 289-Pin MAPBGA [MCIMX286CVM4B]; 168-4018
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | I.MX28 |
| Package Type | MAPBGA |
| Mounting Type | Surface Mount |
| Pin Count | 289 |
| Device Core | ARM9 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 454MHz |
| RAM Size | 128 kB |
| USB Channels | 2 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.35 → 1.55 (Digital Core) V, 1.62 → 2.1 (Analog Core) V |
| Number of Ethernet Channels | 1 |
| Number of I2C Channels | 2 |
| Number of Timers | 4 |
| Number of UART Channels | 6 |
| Dimensions | 14 x 14 x 1.03mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 14mm |
| ADCs | 1 (16 x 12 bit) |
| Timer Resolution | 32bit |
| Height | 1.03mm |
| PWM Channels | 8 |
| Width | 14mm |
| Timers | 4 x 32 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Pulse Width Modulation | 8 Channel |
| Program Memory Type | ROM |
| Maximum Number of Ethernet Channels | 1 |
