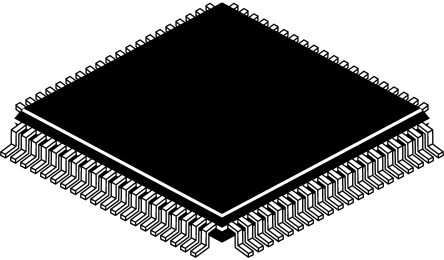

NXP MK10DN512VLK10 ARM Cortex M4 MCU, 100MHz, 512 kB Flash, 80-Pin LQFP [MK10DN512VLK10]; 169-7152
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K1x |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 128 kB |
| Number of PWM Units | 1 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Width | 14mm |
| Number of UART Channels | 4 |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| Timers | 2 (2 Channel) |
| PWM Channels | 8 |
| Dimensions | 14 x 14 x 1.4mm |
| Pulse Width Modulation | 1(8 Channel) |
| Program Memory Type | Flash |
| ADC Resolution | 16bit |
| Number of CAN Channels | 2 |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | DSP |
| Length | 14mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 2 |
| ADCs | 2(16 bit) |
| Height | 1.4mm |
