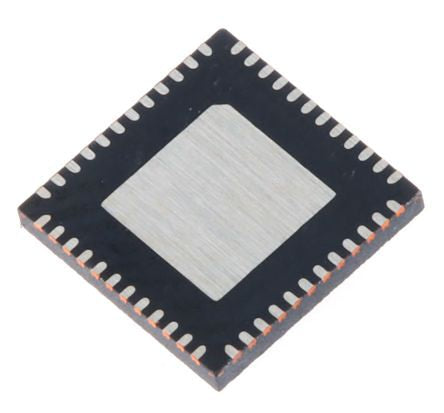

NXP MK10DX32VFT5, 32bit ARM Cortex M4 MCU, 50MHz, 64 kB Flash, 48-Pin QFN [MK10DX32VFT5]; 840-6355
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K1x |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 10 kB |
| Number of PWM Units | 2 |
| ADC Channels | 1 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (2)-Quad Decoder, 1 (8)-Motor Control |
| Dimensions | 7 x 7 x 0.9mm |
| Timers | 1 FTM External Clock, 1 Low Power Timer |
| Width | 7mm |
| PWM Channels | 10 |
| Height | 0.9mm |
| ADCs | 1 x 16-bit |
| Length | 7mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 2 |
| Number of UART Channels | 3 |
| Number of Timers | 2 |
| Number of I2C Channels | 1 |
| ADC Resolution | 16 |
| Instruction Set Architecture | ARM |
