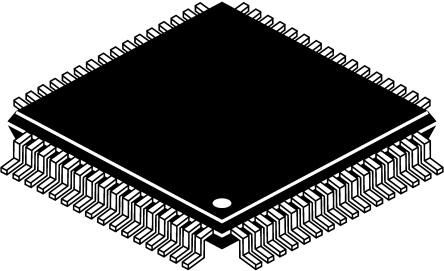

NXP MK20DX128VLH5 ARM Cortex M4 MCU, 50MHz, 128 kB Flash, 64-Pin LQFP [MK20DX128VLH5]; 169-7156
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K2x |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 128 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Maximum Operating Temperature | +105 °C |
| Length | 10mm |
| ADCs | 1(16 bit) |
| Height | 1.4mm |
| PWM Channels | 8 |
| Width | 10mm |
| Timers | 2 (2 Channel) |
| Number of ADC Units | 1 |
| Instruction Set Architecture | DSP |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(8 Channel) |
| Dimensions | 10 x 10 x 1.4mm |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
| ADC Resolution | 16bit |
| Number of UART Channels | 3 |
