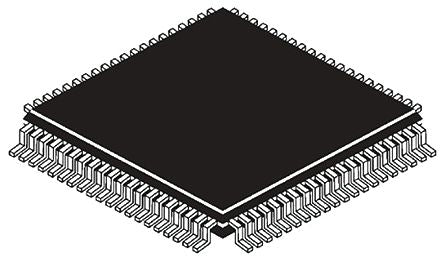

NXP MK20DX256VLK7, 32bit ARM Cortex M4 MCU, 72MHz, 256 kB Flash, 80-Pin LQFP [MK20DX256VLK7]; 169-7303
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K2x |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 64 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of I2C Channels | 2 |
| Program Memory Type | Flash |
| Number of UART Channels | 4 |
| Number of Timers | 8 |
| ADC Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 1 |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +105 °C |
| Length | 12mm |
| ADCs | 2 x 16 bit |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| Width | 12mm |
| Timers | 8 x 16 bit |
| Dimensions | 12 x 12 x 1.45mm |
| Pulse Width Modulation | 1 |
