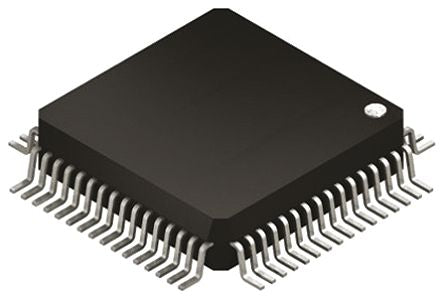

NXP MK22FN1M0VLH12, 32bit ARM Cortex M4 MCU, 120MHz, 1 MB Flash, 64-Pin LQFP [MK22FN1M0VLH12]; 840-6471
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K2x |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 4 |
| ADC Channels | 2 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| PWM Channels | 10 |
| Width | 10mm |
| Timers | 1 FTM External Clock, 1 Low Power Timer |
| Dimensions | 10 x 10 x 1.6mm |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +105 °C |
| Length | 10mm |
| Pulse Width Modulation | 2 (2)-Quad Decoder, 2 (8)-Motor Control |
| Program Memory Type | Flash |
| Number of UART Channels | 3 |
| Number of Timers | 2 |
| Number of I2C Channels | 3 |
| ADCs | 2-ch x 16-bit, 22-ch x 16-bit |
| Height | 1.6mm |
| ADC Resolution | 16 |
| Minimum Operating Temperature | -40 °C |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | ARM |
