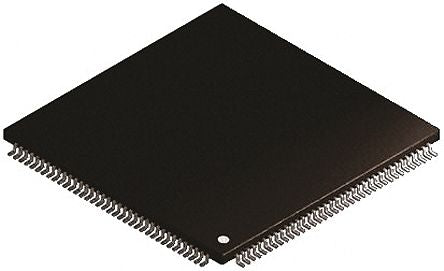

NXP MK53DN512CLQ10, 32bit ARM Cortex M4 MCU, 100MHz, 512 kB Flash, 144-Pin LQFP [MK53DN512CLQ10]; 170-2967
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K5x |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 3 |
| ADC Channels | 2 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Pulse Width Modulation | 1 (8)-Motor Control, 2 (2)-Quad Decoder |
| Program Memory Type | Flash |
| PWM Channels | 10 |
| Width | 20mm |
| Dimensions | 20 x 20 x 1.6mm |
| Height | 1.6mm |
| ADCs | 4-ch x 16-bit, 41-ch x 16-bit |
| Length | 20mm |
| Number of I2C Channels | 2 |
| Number of Timers | 3 |
| Timers | 1 FTM External Clock, 1 IEEE 1588 CLK IN, 1 Low Power Timer |
| Number of UART Channels | 6 |
| Number of Ethernet Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 2 |
| Instruction Set Architecture | ARM |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 16 |
| Maximum Number of Ethernet Channels | 1 |
