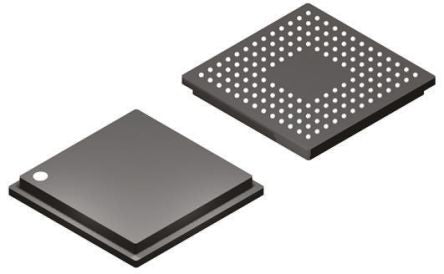

NXP MK60DN512VMD10 ARM Cortex M4 MCU, 100MHz, 512 kB Flash, 144-Pin MAPBGA [MK60DN512VMD10]; 922-7471
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis K6x |
| Package Type | MAPBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| Number of Ethernet Channels | 1 |
| Dimensions | 13 x 13 x 1.7mm |
| Pulse Width Modulation | 1(8 Channel) |
| Timers | 2 (2 Channel) |
| Width | 13mm |
| PWM Channels | 8 |
| Height | 1.7mm |
| ADCs | 2 x 16-bit |
| Length | 13mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 2 |
| Program Memory Type | Flash |
| Number of UART Channels | 6 |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | DSP |
| Number of CAN Channels | 2 |
