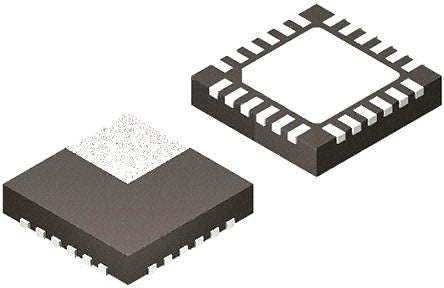

NXP MKL03Z8VFK4, 32bit ARM Cortex M0+ Microcontroller, 48MHz, 8 kB Flash, 24-Pin QFN [MKL03Z8VFK4]; 823-2371
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Kinetis L |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 2 |
| ADC Channels | 7 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 |
| Dimensions | 4 x 4 x 0.65mm |
| Timers | 2 (2 Channel) |
| Width | 4mm |
| Height | 0.65mm |
| Number of UART Channels | 1 |
| Number of Timers | 2 |
| Maximum Operating Temperature | +105 °C |
| Length | 4mm |
| ADCs | 1 (7 x 12 bit) |
| Number of ADC Units | 1 |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 8 bit, 16 bit |
| Instruction Set Architecture | MCU |
| ADC Resolution | 12bit |
