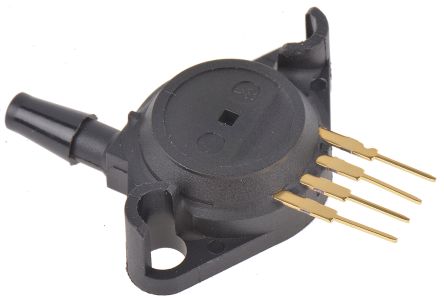

MPX2050GP NXP, Gauge Pressure Sensor 200kPa 50kPa 4-Pin Case 344B-01 [MPX2050GP]; 169-7320
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Overload Pressure | 200kPa |
| Typical Sensitivity | 0.8mV/kPa |
| Mounting Type | Through Hole |
| Package Type | Case 344B-01 |
| Pin Count | 4 |
| Dimensions | 29.85 x 8.26 x 29.34mm |
| Length | 29.85mm |
| Width | 8.26mm |
| Height | 29.34mm |
| Maximum Operating Pressure | 50kPa |
| Maximum Operating Supply Voltage | 16 V dc |
| Maximum Operating Temperature | +125 °C |
| Maximum Output Voltage | 0.04 V |
| Minimum Operating Pressure | 0kPa |
| Minimum Output Voltage | -1 mV |
| Minimum Operating Temperature | -40 °C |
