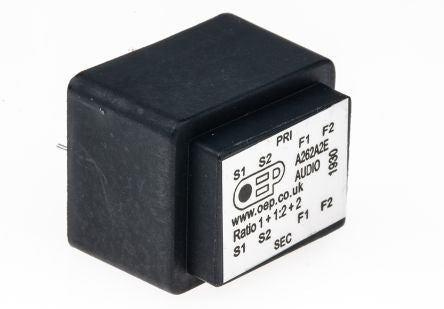

Through Hole Audio Transformer 600Ω 100mW Hz @ 300, 1mW Hz @ 30 [A262A2E]; 210-6419
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Impedance | 150Ω |
| Secondary Impedance | 600Ω |
| Primary DC Resistance | 10.3Ω |
| Power Rating | 1mW Hz @ 30, 100mW Hz @ 300 |
| Secondary DC Resistance | 59.5Ω |
| Dimensions | 27.94 x 22 x 22.9mm |
| Mounting Type | Through Hole |
| Termination Type | Pin |
| Depth | 22.9mm |
| Length | 27.94mm |
| Width | 22mm |
| Maximum Operating Frequency | 35kHz |
| Minimum Operating Frequency | 30Hz |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
| Turns Ratio | 1+1:2+2 |
