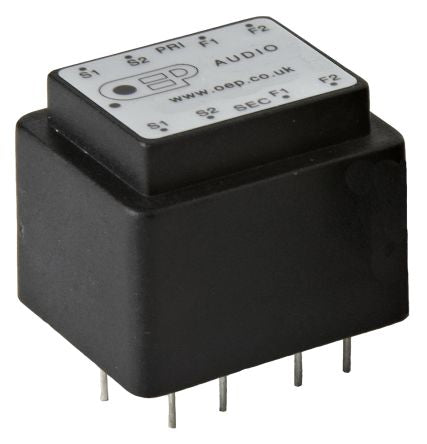

Audio Transformer 150Ω/600Ω : 1.25kΩ/5kΩ 100mW [A262A48E]; 123-7211
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Impedance | 150 Ω, 600 Ω |
| Secondary Impedance | 1.25 kΩ, 5 kΩ |
| Primary DC Resistance | 20.6Ω |
| Power Rating | 100mW |
| Secondary DC Resistance | 220Ω |
| Dimensions | 27.94 x 22.9 x 22.2mm |
| Mounting Type | Through Hole |
| Termination Type | PC Pin |
| Weight | 40g |
| Depth | 22.2mm |
| Length | 27.94mm |
| Width | 22.9mm |
| Isolation Voltage | 1000V |
| Maximum Operating Frequency | 30kHz |
| Construction | Enclosed |
| Maximum Temperature | +70°C |
| Minimum Operating Frequency | 30Hz |
| Turns Ratio | 1 + 1:2.89 + 2.89 |
| Minimum Temperature | -25°C |
| Core Type | Laminated |
