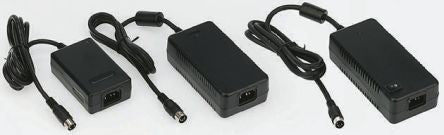

OEP 12 V dc, ±5 V dc Power Supply, 2 A, 5 A, 800 mA [SPU45E-301]; 454-5210
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac |
| Output Voltage Rating | ±5 V dc, 12 V dc |
| Output Current Range | 2 A, 5 A, 800 mA |
| Input Connector | IEC 320-C14 |
| Output Connection Type | DIN Connector |
| Number of Outputs | 3 |
| Load Regulation Range | ±15% |
| Overall Depth | 43mm |
| Cable Length | 1500mm |
| Overall Width | 76mm |
| Overall Dimensions | 146 x 76 x 43mm |
| Minimum Temperature | 0°C |
| Overall Length | 146mm |
| Operating Temperature Range | 0 → +70 °C |
| Efficiency | 0.8 |
| Weight | 535 → 560g |
| Maximum Temperature | +70°C |
| Series | SPU45E |
| Standards Met | IEC-320-C14, UL 94V-0 |
| Holdup Time | 10ms |
