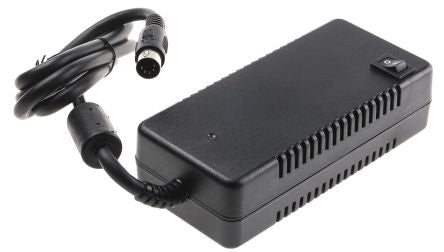

OEP 5 V dc, ±15 V dc Power Supply, 3 A, 6 A, 800 mA, C14 Connector [SPU65-303]; 454-5305
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac |
| Output Voltage Rating | ±15 V dc, 5 V dc |
| Output Current Range | 3 A, 6 A, 800 mA |
| Input Connector | IEC320-C14 |
| Output Connection Type | DIN Connector |
| Number of Outputs | 3 |
| Plug Type | C14 |
| Load Regulation Range | ±7% |
| Overall Dimensions | 168 x 77.6 x 45mm |
| Holdup Time | 16ms |
| Series | SPU65 |
| Maximum Temperature | +70°C |
| Weight | 570 → 750g |
| Overall Length | 168mm |
| Standards Met | IEC-320-C14, UL 94V-0 |
| Overall Depth | 45mm |
| Overall Width | 77.6mm |
| Efficiency | 0.88 |
| Minimum Temperature | 0°C |
| Operating Temperature Range | 0 → +70 °C |
