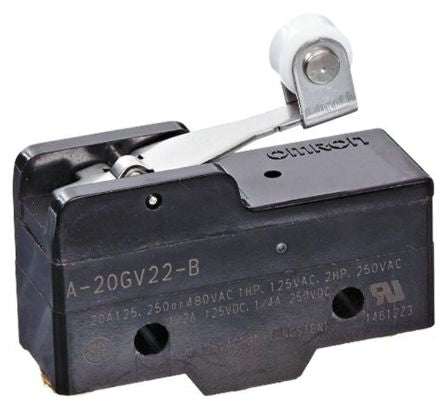

IP00 Snap Action Limit Switch Roller Lever, NC/NO, 500V [A-20GV22-B]; 827-9080
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP00 |
| Maximum Current | 20 A |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 49.2mm |
| Width | 17.45mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 49.2 x 17.45 x 29.4 mm |
| Depth | 29.4mm |
| Mounting Orientation | Panel, Side |
| Maximum Operating Temperature | +85°C |
| Mechanical Life Minimum | 1000000 Operations |
