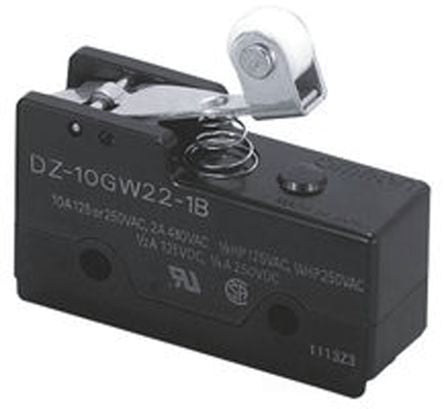

IP00 Snap Action Limit Switch Lever, 2NO/2NC, 250V [DZ-10GW22-1B6]; 827-9232
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP00 |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 49.2mm |
| Width | 17.45mm |
| Depth | 27.9mm |
| Mechanical Life Minimum | 1000000 Operations |
| Maximum Operating Temperature | +85°C |
| Mounting Orientation | Screw |
| Minimum Operating Temperature | -25°C |
| Dimensions | 49.2 x 17.45 x 27.9 mm |
