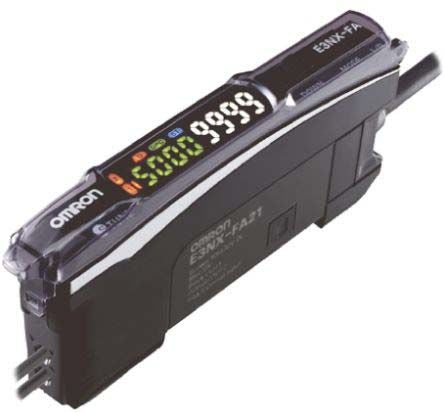

Omron Fibre Optic Sensor, PNP Output CC-Link, CompoNet, EthernetCAT, 920 mW @ 38 mA, 10 → 30 V dc [E3NX-FA54]; 134-7842
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | PNP |
| Terminal Type | 4 Pin M8 Connector |
| Response Time | 1 (Standard Mode) ms, 16 (Giga Power Mode) ms, 30 (Super High Speed Mode) μs, 250 (High Speed Mode) μs |
| Light Source | Red LED |
| Electrical Connection | 4 Pin Connector |
| Power Consumption | 920 mW @ 38 mA |
| Switching Frequency | 50 Hz, 60 Hz |
| Housing Material | Polycarbonate |
| Supply Voltage | 10 → 30 V dc |
| Length | 104.8mm |
| Interface | CC-Link, CompoNet, EthernetCAT |
| Width | 33.5mm |
| Dimensions | 104.8 x 33.5 x 10 mm |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -25°C |
| Standards Met | CE, IEC 60947-1 |
| Depth | 10mm |
| Mounting Type | DIN Rail |
