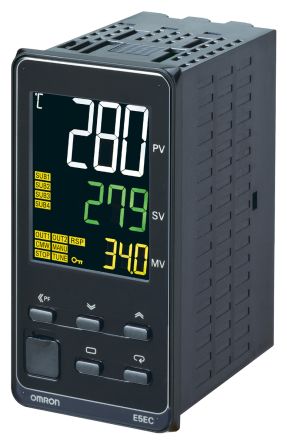

Omron E5EC Panel Mount PID Temperature Controller, 48 x 96mm 3 Input, 1 Output Relay, 24 V ac/dc Supply Voltage [E5EC-RX4DBM-000]; 106-6229
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay |
| Supply Voltage | 24 V ac/dc |
| Size | 48 x 96mm |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Temperature Range | -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (Pt100) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, +100 → +1800 (Type B Thermocouple) °C |
| Display Type | 11-Segment Digital Display |
| IP Rating | IP00, IP20, IP66 |
| Series | E5EC |
| Input Type | Universal (Analogue), Universal (Pt), Universal (Thermocouple) |
| Mounting Type | Panel Mount |
| Display Colour | White |
| Panel Depth | 59mm |
| Termination Type | Screw |
