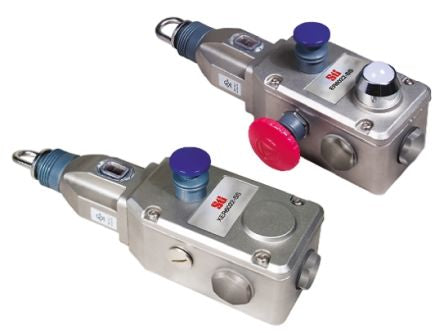

ER Cable Switch with E-Stop, Straight, 100m, 2NO/2NC [ER6022-022MELSS]; 757-9121
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | ER |
| Reset Button | Yes |
| Normal State Configuration | 2NO/2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 100m |
| Maximum Current | 0.125 |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 24V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 x 3 |
| Size of Cable Entries | M20 |
| Width | 96mm |
| Depth | 86mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 239 x 96 x 86 mm |
| Length | 239mm |
| IP Rating | IP67 |
| Maximum Operating Temperature | +80°C |
| E-Stop Button | Yes |
